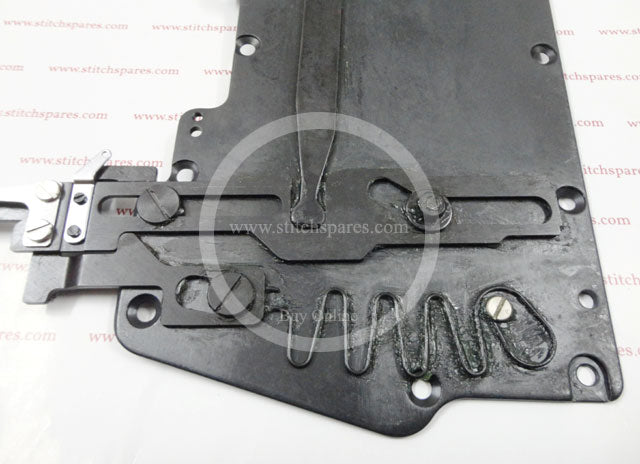

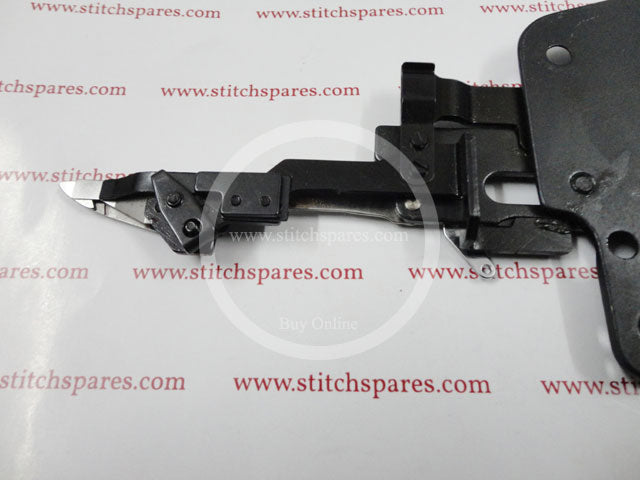

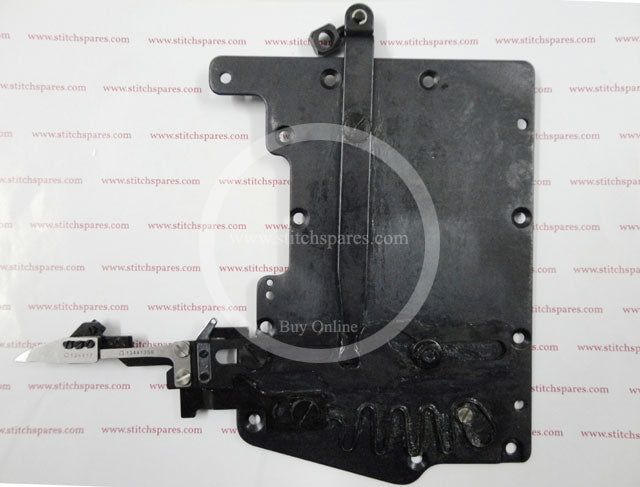

400-26174 Under Thread Trimmer Assembly Juki MF-7800, MF-7813E, MF-7823H, Cylinder bed Coverstitch Sewing Machine
400-26174 Under Thread Trimmer Assembly Juki MF-7800, MF-7813E, MF-7823H, Cylinder bed Coverstitch Sewing Machine
- Category: Best Selling Products, Juki Flatbed Interlock (Flatlock) Machine Spare Parts, Newest Products
Available:
In Stock
Rs. 14,000.00
Incl Taxes
Incl Taxes
400-26174 Under Thread Trimmer Assembly Juki MF-7800, MF-7813E, MF-7823H, Cylinder bed Coverstitch Sewing Machine Spare Parts
This Trimmer Assembly Include Following Parts :-
| Sr. No. | Part Number | Part Name |
| 1 | 400-26174 | UNDER TRIMMER ASSY |
| 2 | 400-70201 | BED TOP COVER FOR UT |
| 3 | 134-40409 | SPRING FOR UT |
| 4 | 134-40102 | LOWER KNIFE HOLDER |
| 5 | 134-41308 | LOWER KNIFE |
| 6 | SM-6030350-SN | SCREW M3 L=2.5 |
| 7 | 134-40805 | EYELET |
| 8 | SM-6020250-TP | SCREW. |
| 9 | 134-40904 | SPACER 1 |
| 10 | 134-41001 | SPACER 2 |
| 11 | SM-6040460-TP | SCREW |
| 12 | 134-40201 | KNIFE HOLDER GUIDE |
| 13 | 134-41902 | LEAF SPRING-2 |
| 14 | 134-41605 | THREADED PLATE |
| 15 | 134-41803 | LEAF SPRING-1 |
| 16 | SM-1020450-TP | SCREW M2 L=4 |
| 17 | 134-41506 | TENSION LEVER |
| 18 | SM-6020600-TP | SCREW |
| 19 | 134-42207 | LEAF SPRING-3 |
| 20 | 134-41407 | LOWER KNIFE GUIDE |
| 21 | 134-41704 | UPPER KNIFE |
| 22 | SM-6020600-TP | SCREW |
| 23 | SM-6021000-TP | SCREW |
| 24 | 134-40300 | LEVER |
| 25 | 400-25990 | LINK DRIVING |
| 26 | 400-25989 | BOLT CARRIER |
| 27 | RE-0250000-K0 | E-RING 2.5 |
| 28 | 400-70110 | SCREW |
| 29 | NM-6040001-SP | NUT M4X0.7 |
| 30 | WP-0431005-SP | PLAIN WASHER 4.3X12X1 |
| 31 | 134-40607 | GUIDE BASE |
| 32 | 134-40706 | GUIDE |
| 33 | SM-6030350-SN | SCREW M3 L=2.5 |
| 34 | SM-4040655-SN | SCREW M4X0.7 L=6 |
| 35 | SM-1040860-SP | SCREW |
| 36 | 134-40508 | STOP PLATE |
| 37 | SM-6040870-SP | SCREW |
Guaranteed To fit in following sewing machine :-
Juki MF-7800, MF-7813E, MF-7823K, UT21, UT23, UT22, UT25,
400-26174 Under Thread Trimmer Assembly Juki MF-7800, MF-7813E, MF-7823H, Cylinder bed Coverstitch Sewing Machine Spare Parts
This Trimmer Assembly Include Following Parts :-
| Sr. No. | Part Number | Part Name |
| 1 | 400-26174 | UNDER TRIMMER ASSY |
| 2 | 400-70201 | BED TOP COVER FOR UT |
| 3 | 134-40409 | SPRING FOR UT |
| 4 | 134-40102 | LOWER KNIFE HOLDER |
| 5 | 134-41308 | LOWER KNIFE |
| 6 | SM-6030350-SN | SCREW M3 L=2.5 |
| 7 | 134-40805 | EYELET |
| 8 | SM-6020250-TP | SCREW. |
| 9 | 134-40904 | SPACER 1 |
| 10 | 134-41001 | SPACER 2 |
| 11 | SM-6040460-TP | SCREW |
| 12 | 134-40201 | KNIFE HOLDER GUIDE |
| 13 | 134-41902 | LEAF SPRING-2 |
| 14 | 134-41605 | THREADED PLATE |
| 15 | 134-41803 | LEAF SPRING-1 |
| 16 | SM-1020450-TP | SCREW M2 L=4 |
| 17 | 134-41506 | TENSION LEVER |
| 18 | SM-6020600-TP | SCREW |
| 19 | 134-42207 | LEAF SPRING-3 |
| 20 | 134-41407 | LOWER KNIFE GUIDE |
| 21 | 134-41704 | UPPER KNIFE |
| 22 | SM-6020600-TP | SCREW |
| 23 | SM-6021000-TP | SCREW |
| 24 | 134-40300 | LEVER |
| 25 | 400-25990 | LINK DRIVING |
| 26 | 400-25989 | BOLT CARRIER |
| 27 | RE-0250000-K0 | E-RING 2.5 |
| 28 | 400-70110 | SCREW |
| 29 | NM-6040001-SP | NUT M4X0.7 |
| 30 | WP-0431005-SP | PLAIN WASHER 4.3X12X1 |
| 31 | 134-40607 | GUIDE BASE |
| 32 | 134-40706 | GUIDE |
| 33 | SM-6030350-SN | SCREW M3 L=2.5 |
| 34 | SM-4040655-SN | SCREW M4X0.7 L=6 |
| 35 | SM-1040860-SP | SCREW |
| 36 | 134-40508 | STOP PLATE |
| 37 | SM-6040870-SP | SCREW |
Guaranteed To fit in following sewing machine :-
Juki MF-7800, MF-7813E, MF-7823K, UT21, UT23, UT22, UT25,
